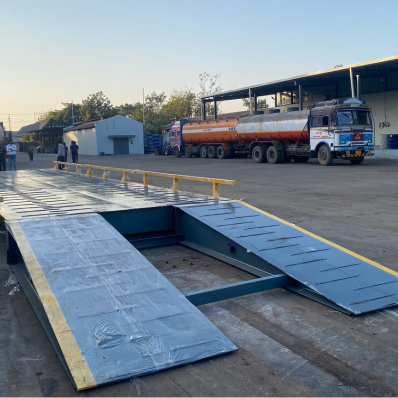

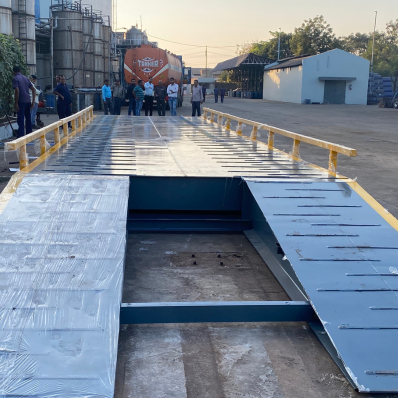

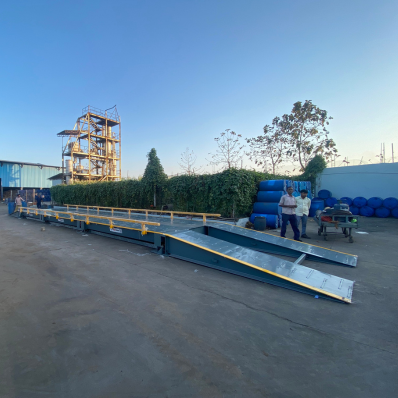

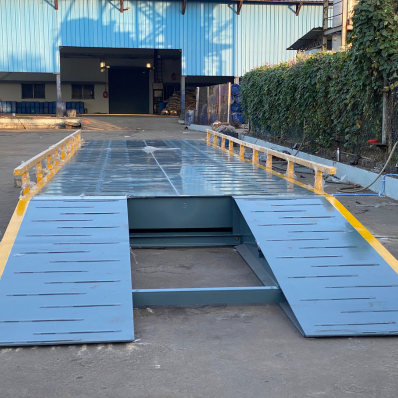

Portable Weighbridge With Ramp
Mobile weighbridge needs no foundation, just smooth hard surface on which the load cell plates rest. This saves lots of cost and time. Standard weighbridge foundation and installation takes 2-3 months while mobile weighbridges can be installed in 2 hours. These weighbridges can also be shifted to another site easily. The modular design helps in easy cost effective transportation and re-installation.
Fully Portable Weighbridge:
Mobile weighbridge needs no foundation, just smooth hard surface on which the load cell plates rest. This saves lots of cost and time. Standard weighbridge foundation and installation takes 2-3 months while mobile weighbridges can be installed in 2 hours. These weighbridges can also be shifted to another site easily. The modular design helps in easy cost-effective transportation and re-installation.
Benefits:
- Self Contained Construction
- Heavy Duty Checkered Deck Plate
- Minimal Installation Cost
- Completely Self Contained
- Reliable Dual Link Suspension System
- Designed For Easy Transportation
Technical Specifications:
| Specification | Available Range |
|---|---|
| Size | 8 Mtr To 24 Mtr |
| Capacity | 10 Ton To 150 Ton |
| Pit Design | Pit Type Pit Less |
| Indicator Designs | Intelligent Terminals |
| Indicator Type | Digital Analog |
| Loadcell Designs | Ball Type Compression |
| Loadcell Type | Digital Analog |
